outboard motor parts :12L fuel tank, 24L fuel tank, fuel hose assy

  • 10 - 99 Sets
    $40.00
  • >=100 Sets
    $38.00
Engine Capacity:
1 - 2L
Lead Time:
Quantity(Sets) 1 - 100 101 - 500 501 - 1000 >1000
Est. Time(days) 10 15 20 Negotiable
Customization:
Customized logo (Min. Order: 500 Sets)
Customized packaging (Min. Order: 500 Sets)

More

Graphic customization (Min. Order: 500 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Engine:
2 Stroke
Fuel Type:
Gasoline
Cylinders:
2
Engine Position:
Outboard
Dimensions (L x W x H) (mm):
4hp-60hp
Fuel tank main parts included:
Fuel joint, Fuel gauge, Fuel tank cap,Air Veent screw,fuel filter cup,
Fuel hose main parts included:
Fuel joint, fuel hose line, Primer pump
Fuel tank capacity:
12L (3.17 us gal); 24L (6.34 us gal)
Fuel hose overall length:
3m (3.28ft)
Fuel tank net weight:
12L: 1.52kg ; 24L: 2.50kg
For outboard motor size:
4hp-60hp outboard motor range
Fuel tank color:
Red
Packing:
Retail carton
Parts warranty:
1 year
Quality standard:
CE,EPA, ISO2008
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Packing option:
Retail Carton for each fuel tank separate.
Each 12L fuel tank: 450 x 310 x 275mm
Each 24L fuel tank: 275 x 340 x 530mm
2. Packing option:
One big Woven bag for 12L fuel tank:8pcs.
One big Woven bag for 24L fuel tank: 4pcs.
Port
Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 100 101 - 500 501 - 1000 >1000
Est. Time(days) 10 15 20 To be negotiated

Outboard motor spare parts: 12L fuel tank, 24L fuel tank, Fuel hose.

All brands of Outboard motor range:

12L fuel tank and fuel hose for all brands 4HP,5HP,6HP range outboard motors with  fuel joint for separately extra fuel tank.

24L fuel tank and hose for All brands 8HP,9.8HP,9.9HP,15HP,20HP,25HP,30HP,40HP,60HP range outboard motors.





Components



                   Fuel tank and fuel hose Components


1. Fuel tank Assy
2. Fuel cap Assy
3. Fuel filter cap Assy(with Air vent screw, *)
4. Gasket
5. Fuel gauge with fuel joint Assy (*)
6. WASHER 5
7. Bolt M5x20
8. Fuel hose Assy
9. Fuel tank body (12L or 24L fuel tank body different,See photos in real)

Remarks (*):

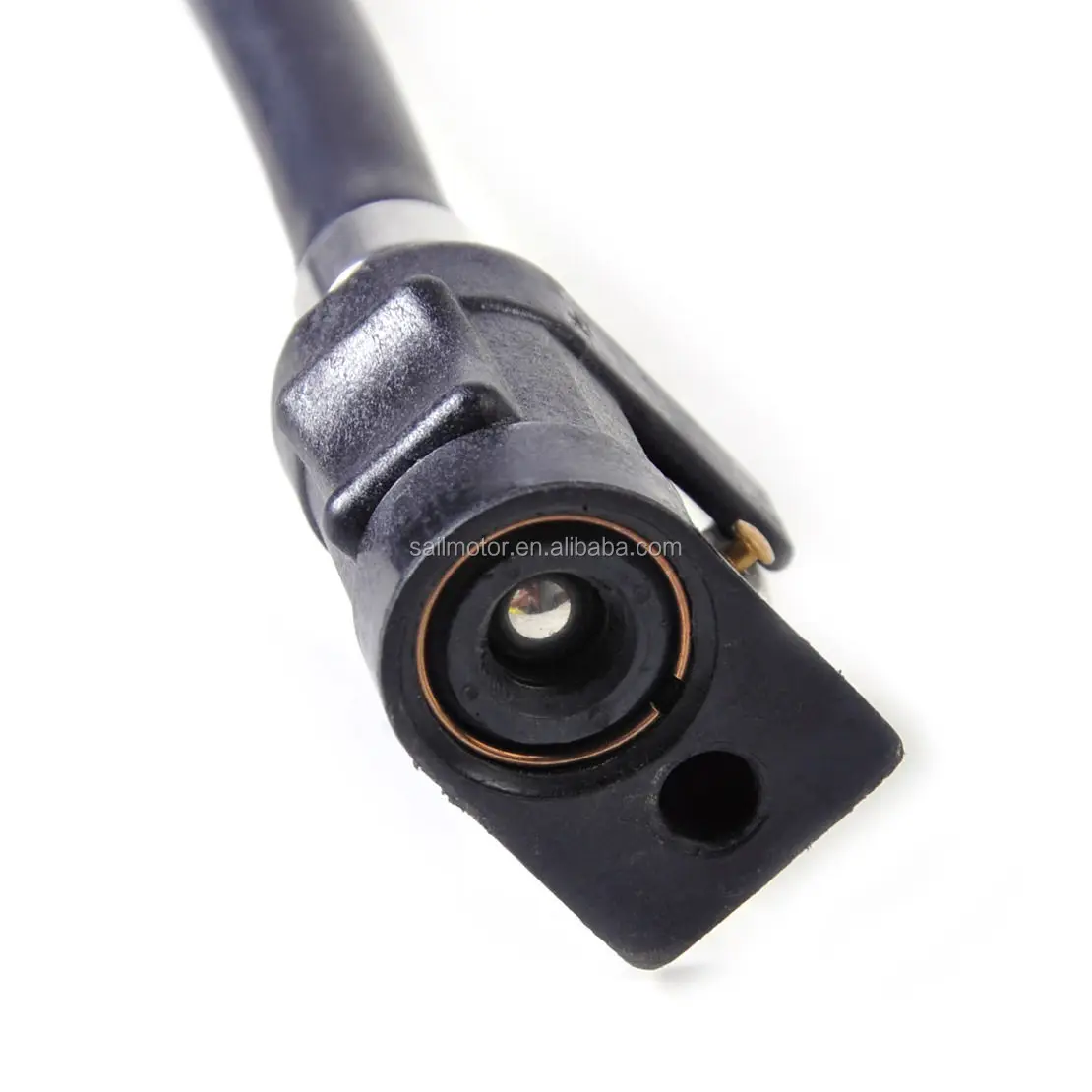

5. Fuel joint
This joint is used to connect the fuel hose.
5. Fuel gauge
This gauge shows the approximate amount of fuel remaining in the fuel tank.
2. Fuel tank cap
This cap seals the fuel tank. To loosen the cap, press and hold the pressure relief tab and turn the cap counterclockwise.
2. Air vent screw
This screw is on the fuel tank cap. When turning the air vent screw counterclockwise, it is loosened and the pressure in the fuel tank is released to a certain pressure. Air is allowed to enter the fuel tank while operating the engine.

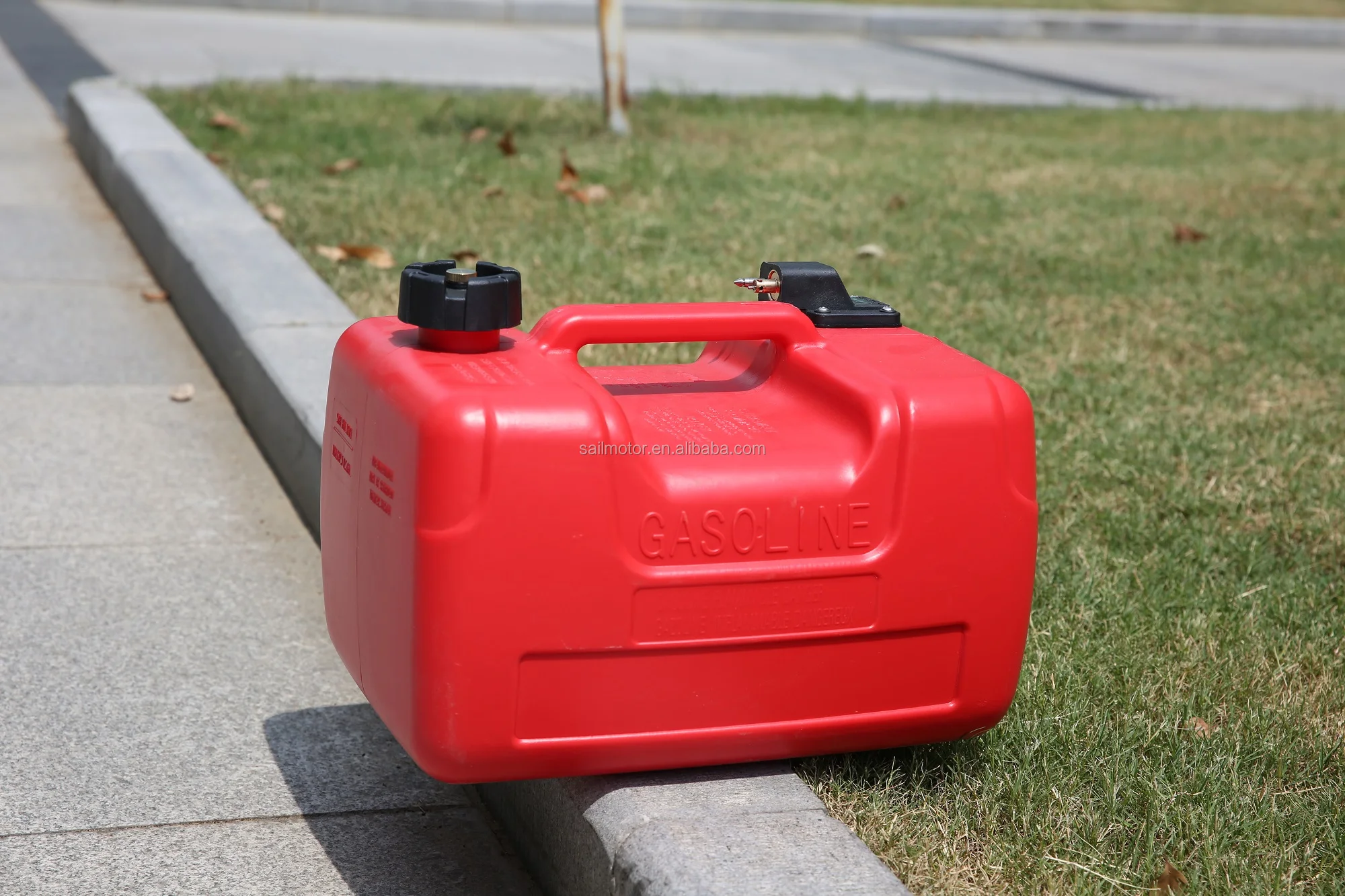

12L fuel tank photo:

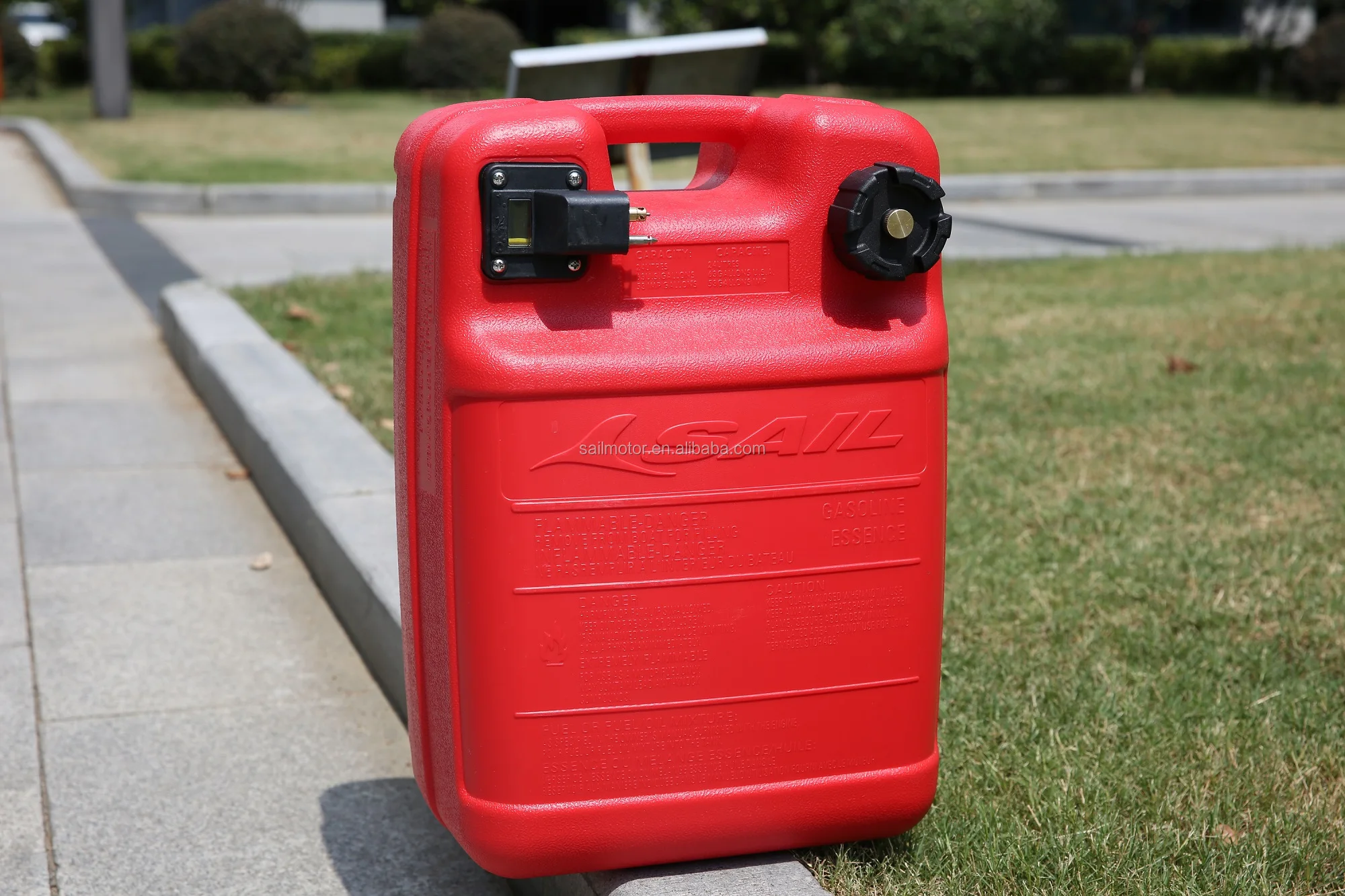

24L fuel tank photo:

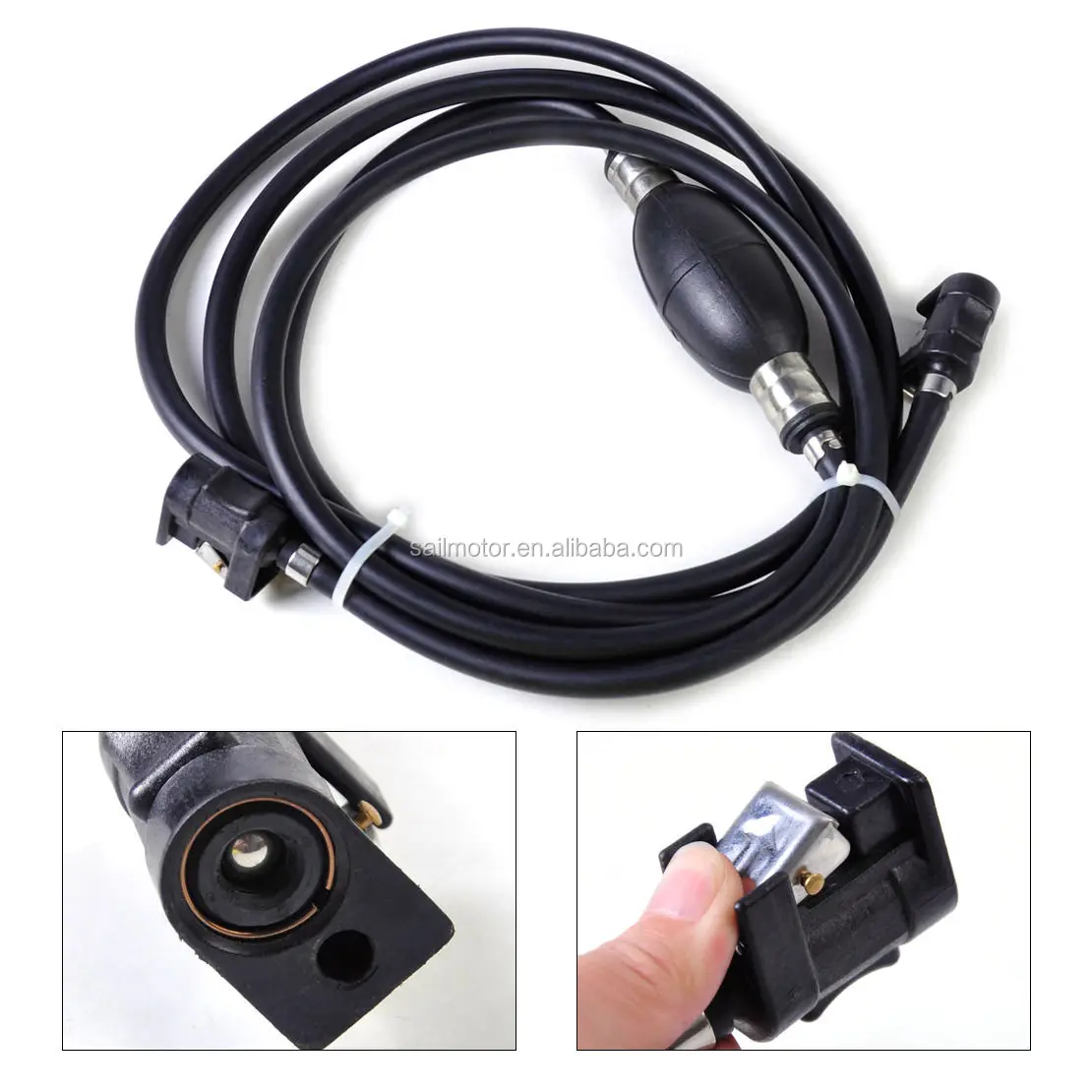

Fuel hose photos


Packing

We offer two packing option:



1. Retail carton: Each fuel tank and fuel hose as one package packed into one retail carton.



2. Woven bag:   One woven bag with 8pcs 12L fuel tank.  One woven bag with 4pcs 24L fuel tank.  Fuel hose packing separately carton.
